IoT Data Governance Framework for Security, Quality and Compliance

Technical review: CodeCones Data Engineering Team

An IoT data governance framework is the operating system for deciding what connected-device data may be collected, trusted, used, shared, retained and deleted. A useful framework does more than publish policy: it attaches controls and evidence to every critical data stream from sensor and edge processing through cloud storage, analytics, AI and downstream business decisions.

The short answer: govern the decision path, not only the database

IoT governance is different from ordinary enterprise data governance because the data starts in physical devices, changes as it crosses gateways and edge logic, and can influence automated actions. A trustworthy program therefore governs source identity, measurement quality, security, permitted use, lineage, lifecycle and proof together. If one link is missing, a dashboard may look precise while the underlying signal is stale, miscalibrated, unauthorized or impossible to reconstruct.

• Treat every critical telemetry stream as a governed product with an owner, purpose and contract.
• Enforce controls at collection, edge, transport, ingestion, transformation, storage and consumption.
• Measure quality continuously instead of validating only when data lands in a warehouse.
• Translate legal or policy obligations into testable controls, owners and evidence.
• Make exceptions time-bound, visible and reviewable rather than informal engineering decisions.

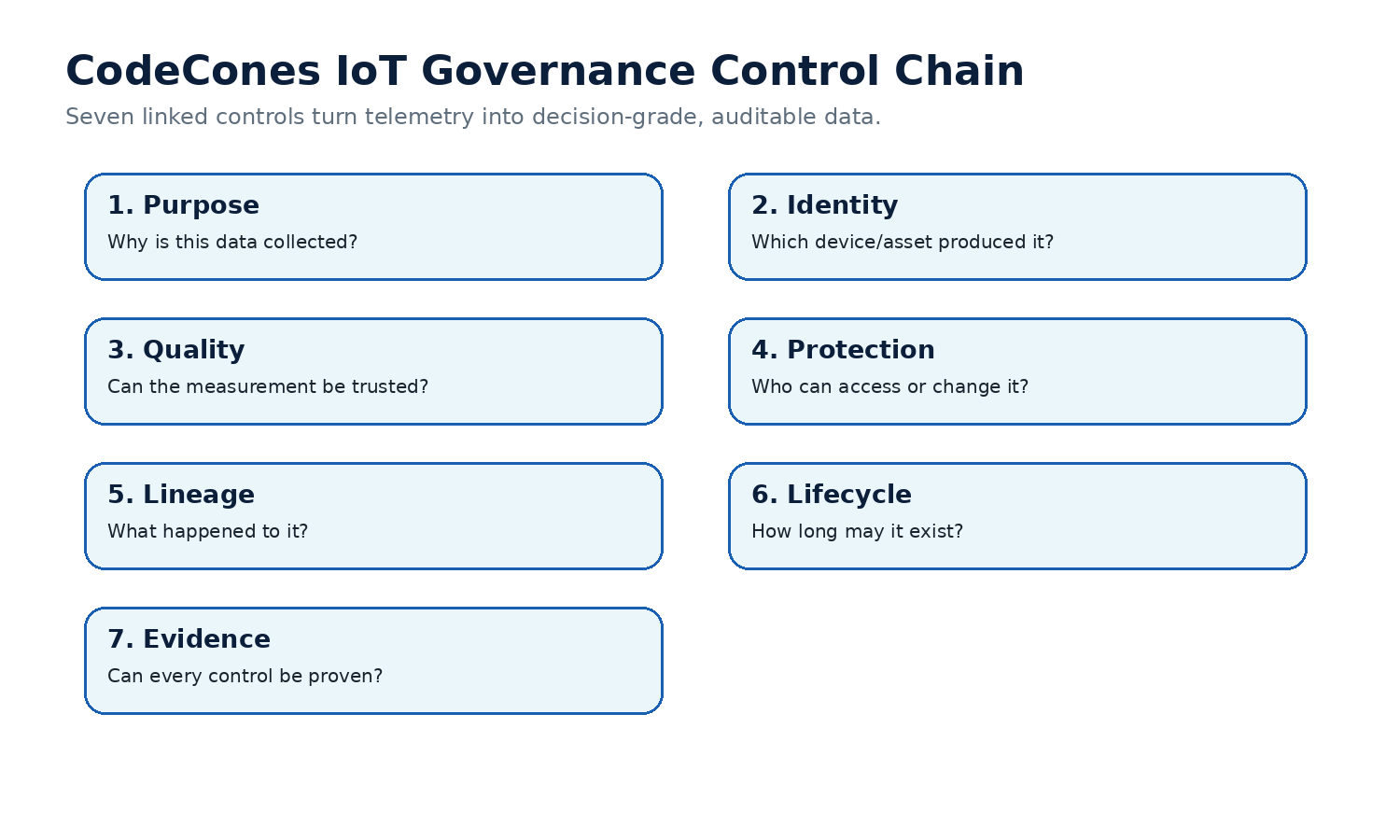

The CodeCones seven-control chain

The CodeCones model below is a practical heuristic for engineering and governance discussions, not a certification. It turns the IoT data governance framework into seven linked controls that can be implemented, tested and audited.

CodeCones next step: If you are building connected products or operational data platforms, explore CodeCones engineering capabilities for production systems.

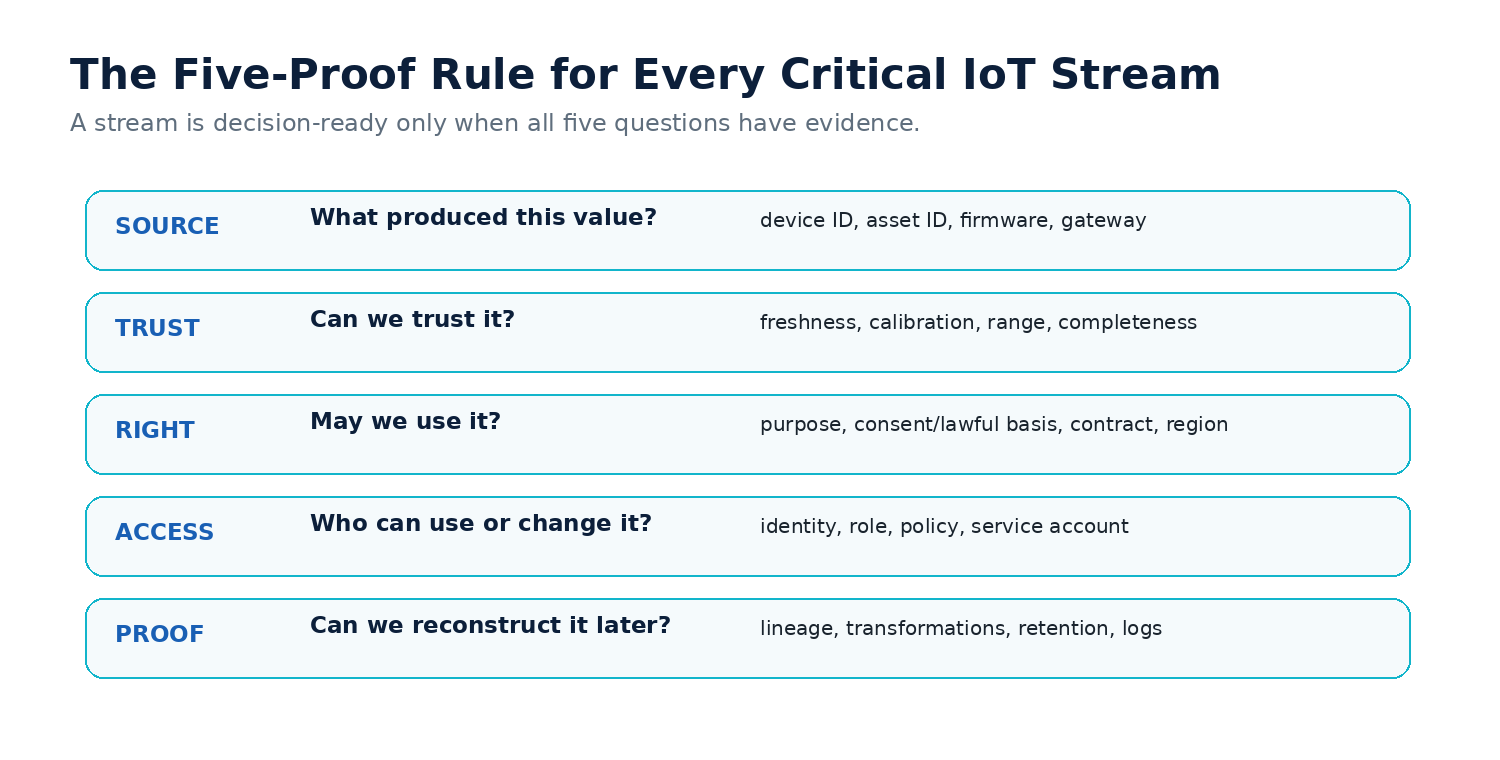

The Five-Proof Rule: a citation-worthy test for decision-ready telemetry

A critical IoT stream should not be called trustworthy merely because the pipeline is online. Apply the Five-Proof Rule: prove source, trust, right, access and reconstruction. If a team cannot answer one of these five questions with evidence, the data should be treated as conditionally trusted until the gap is resolved. This IoT data governance framework makes that proof explicit instead of assuming pipeline availability equals trust.

• Source proof: Device identity, asset binding, firmware or software version and ingestion path are known.
• Trust proof: Freshness, calibration, completeness, range, ordering and duplicate behavior meet defined thresholds.
• Right-to-use proof: The purpose, contract, consent or other applicable basis supports the intended use and region.
• Access proof: Users and services have least-privilege permissions with controlled administration and export.
• Reconstruction proof: Lineage, transformations, schema versions, retention actions and exceptions can be reproduced later.

Security: protect the data path from device to consumer

IoT data security must begin at the device and continue through every broker, API, processor, store and consumer. NIST IR 8259A describes a core baseline of device cybersecurity capabilities intended to help protect devices, device data, systems and ecosystems. For data governance, the practical implication is that source identity and product security controls cannot be separated from downstream access governance.

Security controls should be risk-based. A low-risk environmental sensor does not need the same control depth as connected medical equipment or a stream that can trigger industrial actuation. The governance record should therefore include consequence: what could happen if confidentiality, integrity, availability or provenance fails?

Data quality: define fitness for a decision, not a generic accuracy score

IoT data quality is contextual. A value may pass a schema test and still be unfit for use because the timestamp drifted, the sensor was overdue for calibration, the device changed location, packets arrived out of order, or an edge rule silently aggregated readings. Recent research continues to identify accuracy, completeness, consistency, timeliness and validity as central dimensions, while emphasizing cross-layer IoT quality challenges.

Create a versioned data contract for every high-impact stream. The contract should define units, schema, valid range, expected cadence, lateness tolerance, null behavior, duplicate rules, ordering, calibration metadata, device state, owner and the response when a rule fails. Quality controls become meaningful only when a failed rule has an operational action: quarantine, retry, mark as degraded, block promotion, or accept through an explicit exception.

CodeCones next step: For pipelines that need lineage, quality controls and production observability, review CodeCones IoT Data Intelligence services.

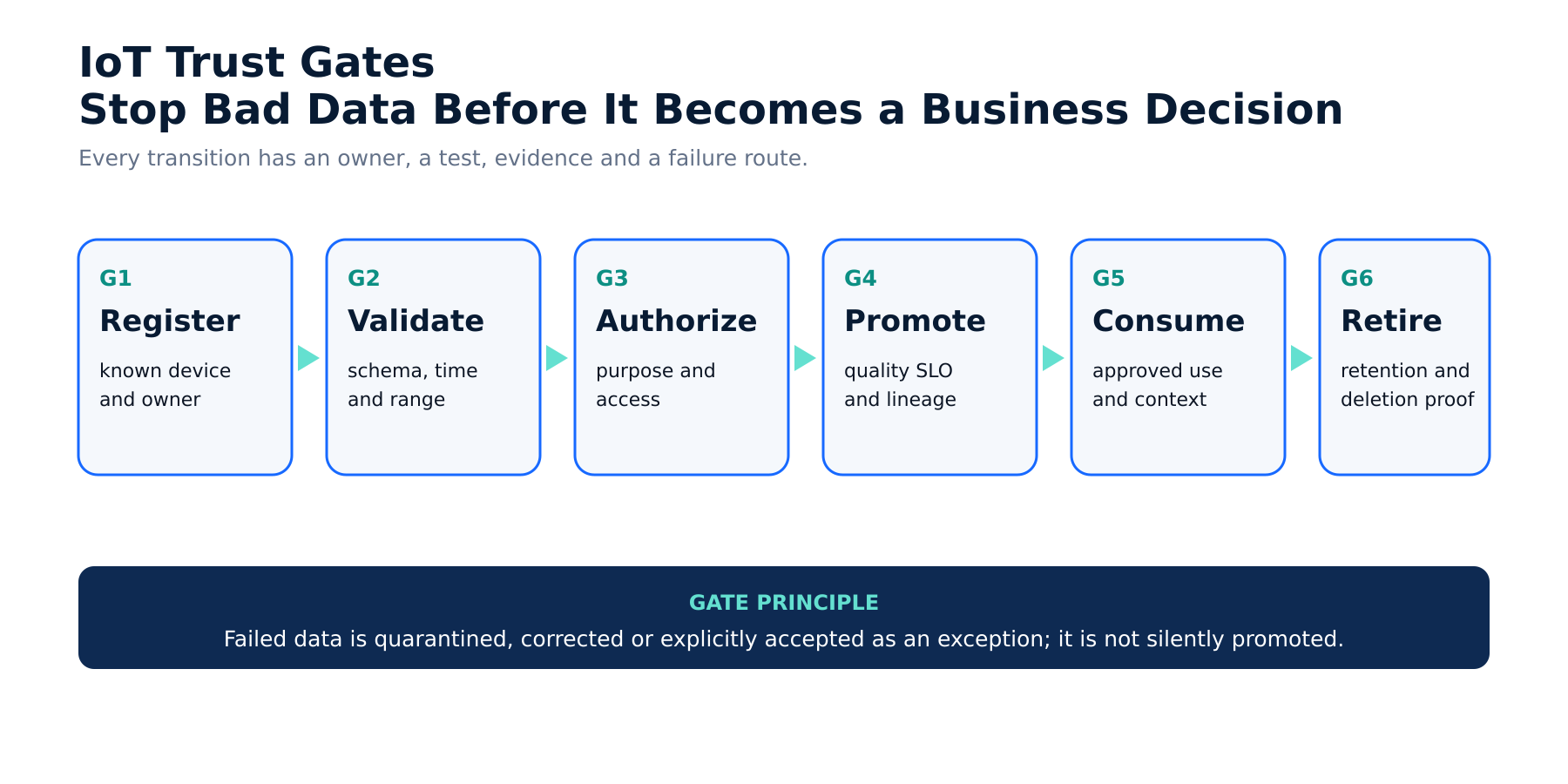

Use trust gates so bad data cannot silently reach analytics or AI

A retrieval-friendly governance design uses explicit gates between lifecycle stages. Each gate has an input, a test, an owner, evidence and a failure route. This makes the control understandable to people and machine-readable systems because the rule is tied to a specific transition instead of buried in a broad policy document.

Gate 1 registers the source. Gate 2 validates schema, time and measurement rules. Gate 3 checks purpose and authorization. Gate 4 promotes data only after quality and lineage requirements pass. Gate 5 verifies that the consumer and use are approved. Gate 6 enforces retention and records deletion or anonymization. This pattern reduces the chance that questionable data becomes an accepted fact simply because it reached a curated table.

Compliance: map obligations to controls, evidence and ownership

Compliance should be implemented as a traceability matrix, not a list of regulation names. For every applicable requirement, document the data in scope, the control that satisfies the requirement, the technical enforcement point, the accountable owner, the evidence generated and the review cadence. Legal interpretation still belongs to qualified counsel; engineering governance makes the resulting requirement testable. In an IoT data governance framework, each obligation should resolve to a control and an evidence artifact.

For personal data, UK GDPR principles include purpose limitation, data minimisation, accuracy, storage limitation, integrity and confidentiality, and accountability. The ICO states that organizations should justify retention and erase or anonymize personal data when it is no longer needed. For connected products in the EU, the Data Act has applied since September 12, 2025 and creates rules around access to and use of data from connected products and related services. That makes data-access design an architecture concern as well as a contractual one.

Edge governance: the blind spot that breaks lineage

Edge computing can reduce latency, bandwidth and exposure, but it also creates hidden transformations. Filtering, aggregation, normalization, compression, feature extraction and local buffering may change what later systems believe is “raw” data. Govern edge logic as part of the data pipeline: version the rule, record deployment state, preserve enough metadata to reconstruct the transformation, and define what happens when connectivity or storage limits force degraded behavior.

A practical rule is simple: if edge logic can change a business meaning, alert, model feature or compliance outcome, it belongs in lineage. This includes sampling-rate changes, unit conversions, event suppression, local anomaly scoring and device-side deduplication.

Lineage: reconstruct the value, not just the table

Traditional lineage often starts at a cloud topic or warehouse table. IoT lineage should start at the physical or logical source and include device identity, asset relationship, firmware, gateway, edge version, broker topic, schema version, transformations, storage zones and downstream consumers. The goal is not to store every possible detail forever; it is to preserve enough evidence to explain how a consequential value was produced and changed.

For high-impact data, use immutable identifiers for source events or batches and version transformations. When rules change, record the effective time. That makes it possible to answer a difficult audit or incident question: “Would the same source event produce the same interpreted result under the rule set active at that time?”

CodeCones next step: If the challenge is building governed streaming pipelines, data contracts and lineage across cloud platforms, see CodeCones Data Engineering and MLOps services.

A six-stage implementation plan with exit criteria

Implement the IoT data governance framework as a sequence of decisions. Do not declare a stage complete because a meeting happened; require an artifact and an accountable owner.

Start with the smallest set of streams that can create material business, safety, privacy, financial or regulatory consequences. Expanding from a governed high-value slice is usually more effective than building an enterprise catalog that contains thousands of assets but little enforceable control.

Measure governance with operational metrics, not policy completion

A useful scorecard measures whether controls operate. Three simple ratios create an executive view without pretending governance can be reduced to one number:

• Governed Stream Coverage = critical streams with an approved governance record ÷ all critical streams.
• Automated Control Coverage = applicable controls tested automatically ÷ all applicable controls.
• Evidence Freshness = controls with evidence inside the required review window ÷ controls requiring evidence.

These measures keep the IoT data governance framework tied to observable production behavior. Add domain metrics underneath: unknown-device events, quality-rule failure rate, late-event rate, percentage of critical streams with complete lineage, privileged-access exceptions, expired exceptions, retention failures, unresolved deletion jobs, schema-change incidents and time to revoke compromised credentials.

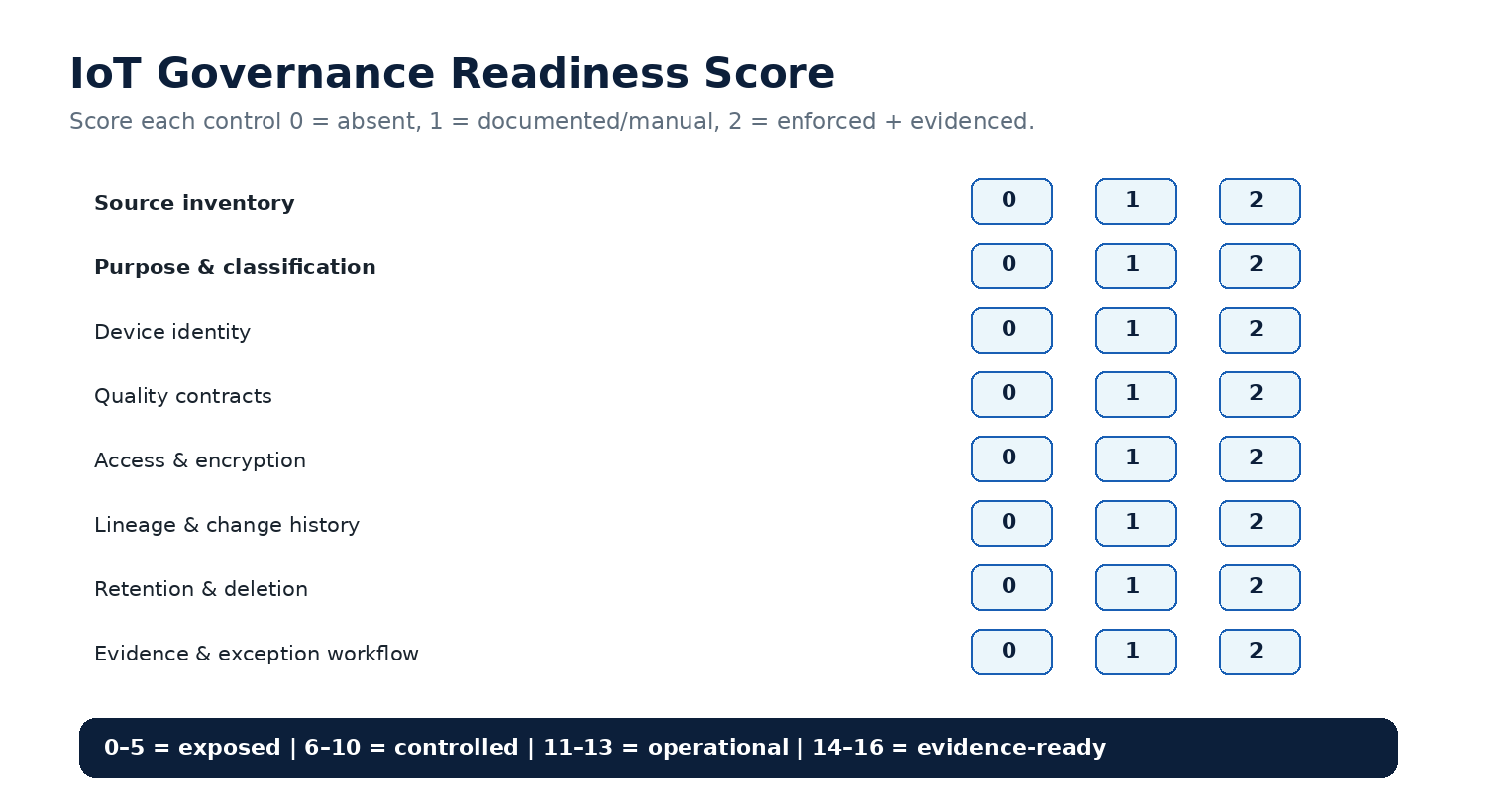

Use the readiness score before scaling the fleet

The following readiness model is a CodeCones practical heuristic, not a certification. Score eight areas from 0 to 2: 0 means absent, 1 means documented or mostly manual, and 2 means technically enforced with current evidence. The maximum score is 16.

A score below 6 indicates material exposure because foundational ownership or controls are missing. Scores from 6 to 10 indicate a controlled but still manual program. Scores from 11 to 13 indicate operational governance with a smaller number of gaps. Scores from 14 to 16 indicate evidence-ready operation for the assessed scope. A high total should never hide a zero in a high-consequence control; treat source identity, critical quality, access and legal-use gaps as blockers when the risk requires it.

Common failure modes that make governance look stronger than it is

• Catalog without enforcement: Assets are documented, but pipelines do not block or flag policy violations.
• Cloud-only lineage: The lineage graph ignores devices, gateways and edge transformations.
• One retention period for everything: Teams retain data “just in case” rather than linking retention to purpose and obligation.
• Quality without context: Validation checks syntax but ignores calibration, unit, location or operating state.
• Shared credentials: Source attribution becomes unreliable because multiple devices or services use the same identity.
• Permanent exceptions: Temporary workarounds have no expiry, owner or compensating control.
• Compliance by acronym: A policy lists GDPR, HIPAA or ISO standards without mapping requirements to actual controls.
• AI consumption without provenance: Models receive telemetry features without knowing source quality, time window or transformation history.

Conclusion: make trust provable before making data valuable

The strongest IoT data governance framework does not begin with a policy library. It begins with consequential data streams and asks what must be true before those streams can influence operations, analytics, automation or AI. Govern purpose, source identity, quality, protection, lineage, lifecycle and evidence as one chain; add trust gates; measure control operation; and require proof for exceptions. That turns governance from documentation into an engineering capability.

CodeCones next step: If you need an architecture review for IoT data, streaming pipelines, edge controls or governance evidence, discuss the system and constraints with the CodeCones team.

Frequently Asked Questions

What is IoT data governance?

IoT data governance is the system of decision rights, policies, technical controls, ownership and evidence used to manage connected-device data across its lifecycle. It covers more than databases because source identity, device context, edge processing, telemetry quality and downstream use can all change whether a value is trustworthy or permissible to use.

Which data quality dimensions matter most for IoT?

Common dimensions include accuracy, completeness, consistency, timeliness or freshness, validity and uniqueness, but IoT programs often also need calibration status, ordering, sampling behavior and asset context. The correct dimensions depend on the decision the data supports; quality should be defined as fitness for that use.

What should an IoT data contract contain?

A useful contract defines source identity, schema, units, cadence, freshness, valid ranges, null and duplicate behavior, ordering, calibration metadata, security classification, retention, owners, consumers and failure handling. Version the contract and connect changes to lineage so consumers know which interpretation applied at a given time.

What makes IoT governance useful for AI systems?

AI systems need reliable provenance, context and quality signals. Governance helps teams know which device produced a feature, which transformations occurred, whether the data was timely and permitted for the intended use, and whether a model should reject or down-weight degraded inputs. That improves evaluation, incident analysis and auditability.
